R3 TILTROTATORS

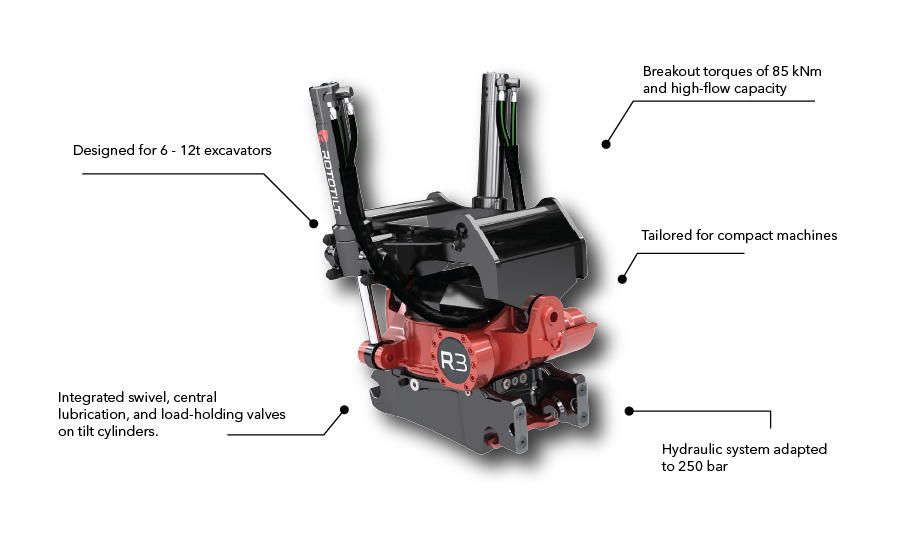

Meet the Rototilt® R3, designed for 6-12 tonne excavators and handling breakout torques of 85 kNm. Perfect for compact machines, the R3 offers increased flexibility, high-flow and electric swivel capabilities, central lubrication, and load-holding valves. Its hydraulic system is optimized for 250 bar, ensuring top performance while minimizing fuel consumption
BENEFITS & FEATURES OF THE R3 TILTROTATOR
TECHNICAL SPECIFICATIONS
| Machine weight, min-max | 6000 - 12000 kg |
|---|---|
| Weight (from) | 300 kg |
| Bucket width, max | 1500 mm |
| Breakout force, max | 81 kN |
| Breakout torque, max | 85 kNm |
| Tilt angle (2x) | 40 ° |
| Rotation speed (1 revolution in) | 7.0 s at 50 l/min |
| Working pressure | 25 MPa |
| Recommended hydraulic flow, min | 69 l/min |
|---|---|
| Number of lubrication points | 6 |
| Rotation torque | 6100 Nm |
| Tilting torque, single-acting cylinders | 21500 Nm |
| Tilting torque, double-acting cylinders | 26500 Nm |
| Dimension A, Width | 677 mm |
| Dimension B, Installation height total | 939 mm |
| Dimension C, Length | 607 mm |
| Dimension D, Installation height | 467 mm |
DISCOVER MORE ABOUT THE R3 TILTROTATOR
Introducing the Rototilt® R3, a state-of-the-art tiltrotator designed specifically for excavators weighing between 6-12 tonnes. The R3 is built to handle breakout torques of up to 85 kNm, making it an ideal choice for compact machines, a rapidly growing segment in the excavator market. With the R3, you gain unparalleled flexibility and functionality, allowing you to take on a wider variety of assignments with ease.
Key Features
- Integrated Swivel: Offers high-flow and electric swivel capabilities.
- Central Lubrication: Well-integrated system ensures optimal performance and longevity.
- Load-Holding Valves: Equipped on the tilt cylinders for added safety and reliability.
- Efficient Hydraulics: Adapted for 250 bar to ensure maximum performance.
- Fuel Efficiency: The tiltrotator’s low weight and efficient hydraulics help minimize fuel consumption.
Enhanced Performance
Combine the R3 with the QuickChange™ quick coupler system and the SecureLock™ safety solution for even more benefits. These features enhance the R3’s versatility, safety, and ease of use, making it a top choice for any contractor.
